Description

Junior 2 It is a design that combines modern design with maximum comfort of use. The dynamic body with a gable roof, large glazing and extensive terraces gives it a unique character and makes it perfectly fit into any landscape – from urban suburbs to the surroundings of nature.

Despite the compact construction with a surface area of less than 60 m², the house offers 77 m² of functional space. The well-thought layout of the rooms includes:

  • three comfortable bedrooms,
  • two bathrooms,
  • practical office,
  • utility room,
  • and a spacious day zone with direct access to the terraces.

Thanks to this, Junior provides everything that a modern family needs – the convenience of everyday life, the comfort of remote work and ideal conditions for rest.

It is a house that impresses with its aesthetics and functionality in every detail.

Gallery

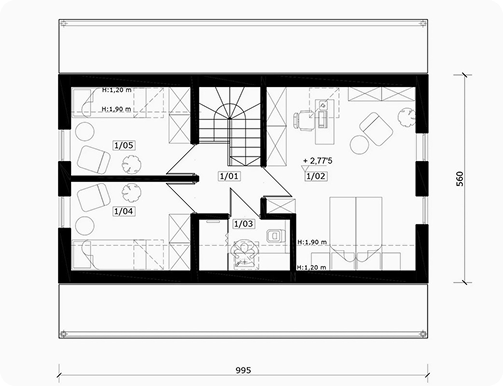

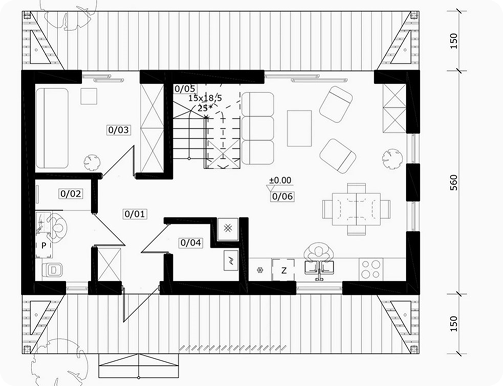

Floor plans

Area (m²) 43,77
Bathroom 3,77
Room 7,22
Utility room 2,51
Stairs 3,65
Living room + kitchen + dining 19,89
Corridor 6,73
Area (m²) (40,91) 33,27
Corridor 3,57
Room (18,38) 14,79
Bathroom (3,02) 2,11
Room (7,97) 6,40
Room (7,97) 6,40

Preliminary design work

Description Unit Closed shell Developer standard
Complete Construction Design
-architectural design Check Check
foundation structural design Check Check
building structural design Check Check
electrical installation design Check Check
water and sewage installation design Check Check
central heating and ventilation design Check Check
or a design provided by the investor Check Check
External Wall
silicone plaster in white color / façade cladding board or standing seam metal sheet Check
base layer for plaster (adhesive + mesh) / ventilated façade framework Check Check
thermal insulation made of façade mineral wool 80-100mm Check Check
gypsum-fiber board sheathing 12mm Check Check
timber frame structure made of certified structural timber 195mm Check Check
mineral wool infill 200mm Check
vapor barrier foil 0,2mm Check
installation battens 45x50mm Check
OSB board 12mm Check
gypsum plasterboard 12mm Check
Internal Wall
gypsum plasterboard 12,5mm Check
OSB board 12mm Check
structure made of C24 structural timber 45x95mm Check Check
mineral wool infill 100mm-150mm Check
OSB board 12mm Check
gypsum plasterboard 12,5mm Check
Ground Floor
damp-proof insulation Check Check
floor insulation 100mm Check
cement screed 70mm Check
Ceiling in a Single-Storey House
OSB board 22mm Check
load-bearing structure made of C24 structural timber according to design requirements 200-220mm Check Check
rock wool insulation within the structural cavity 200mm Check
vapor barrier foil 0,2mm Check
OSB board 12mm Check
installation battens 45x30mm Check
rock wool insulation within the structural cavity 100mm Check
gypsum plasterboard 12mm Check
Ceiling in a House with Attic
OSB board 22mm Check
load-bearing structure made of C24 structural timber according to design requirements 200mm Check Check
rock wool insulation within the structural cavity 0,2mm Check
OSB board 12mm Check
installation battens 45x30mm Check
gypsum plasterboard 12mm Check
Roof – Single-Storey House
roofing made of sheet metal with flashings, roof tiles, or bitumen shingles Check Check
battens and counter-battens Check Check
roofing membrane Check Check
gypsum plasterboard 15mm Check Check
roof structure made of structural timber 200-240 mm Check Check
guttering system Check
Roof – House with Usable Attic
roofing made of sheet metal with flashings, roof tiles, or bitumen shingles Check Check
battens and counter-battens Check Check
roofing membrane Check Check
gypsum plasterboard 15mm Check Check
roof structure made of structural timber 200-240mm Check Check
guttering system Check
thermal insulation made of rock wool between rafters 200mm Check
vapor barrier foil Check
installation battens filled with mineral wool 100mm Check
OSB board 12mm Check
gypsum plasterboard 12mm Check
Electrical and Plumbing Systems
complete wiring in non-flammable conduits Check
installation of distribution board with circuit protection Check
-Plumbing and sewer pipe installation Check
Window and Door Joinery
entrance door Check Check
white PVC multi-chamber windows Check Check
external metal window sills in an agreed color Check
roof window / access hatch Check Check
Heating Installation
installation of insulation for underfloor heating Check
installation of foil or another selected system Check
installation of underfloor heating pipes in a spiral pattern Check
installation of perimeter insulation Check
installation of surface-mounted cabinets and manifolds Check
routing of vertical and horizontal heating connections Check
preparation of connection for the heat source Check
flushing and venting of the system Check
hydraulic balancing Check
